Water Purification System That Generates Drinking Water During Power/Water Outages

Nippon Basic Co., Ltd.

Industry: Manufacturing
Publication date June 19, 2023 (Posted on December 20, 2023)
Sector People's Life and Urban Life / Water Environment and Water Resources

Company Overview

Established in 2005, Nippon Basic Co., Ltd. is a manufacturer specializing in emergency water purification equipment. The company manufactures various types of water purification and desalination equipment and sells its products domestically and internationally including countries such as Bangladesh and Myanmar.

Climate Change Impacts

In recent years, heavy rains and typhoons caused by climate change have resulted in damage to water supply facilities and water outages. It is important to stockpile or secure water for emergencies, assuming that it will take time for relief supplies to arrive after a disaster strikes.

Adaptation Initiatives

We developed Cycloclean Portable SP, a water purification device that can be stored in a small suitcase and generates drinking water from indoor/outdoor sources during electricity/water outages after a disaster, and Cycloclean Portable SPX, which adds an electric pump to the above (Fig. 1). This device represents our technology that succeeded in downsizing the water purification treatment function. By passing through a three-stage filtration filter, it removes sand, mud, garbage, turbidity, mold odor, pesticides, organic solvents, general bacteria, E. coli, legionella, and cryptosporidium, and produces the same level of drinking water as tap water (Figs. 2 and 3).

We also offer other types of water purification systems, and the overview of each product is shown in the table below.

Product Water intake sources Features Location of use
  • "Cycloclean Portable SP" and "Cycloclean Portable SPX" Water purification units that can be stored in a small suitcase
  • Rivers, ponds, swamps and lakes inhabited by fish
  • Pool water
  • Water for fire prevention
  • Water storage tanks
  • Leftover bath water that does not contain bath salts
  • Equipped with casters for easy mobility to the water source
  • Manual pump can produce 12 liters of drinking water for a family of 4 in 8 minutes
  • Municipalities, large-scale commercial facilities, designated evacuation sites, etc.
  • Local community associations, neighborhood associations, condominium management associations, etc.
  • Private residence
  •
  • "Cycloclean 1500" Gasoline engine type large capacity water purification system for fresh water
  • Gasoline engine powered large capacity water purification system capable of producing water during power outages
  • Generates drinking water equivalent to 750 2L plastic bottles per hour from a freshwater source
  • Municipalities, large commercial facilities, designated evacuation sites, etc.
  • "Hydropure VT-2/R.O.tation" Server-type water purification system for constant disaster preparedness
  • Daily water intake sources: tap water
  • Emergency water intake sources: rivers, ponds, swamps, lakes inhabited by fish, pool water, water for fire prevention, water storage tanks, and leftover bath water that does not contain bath salts
  • Usually used as a household hot/cold water purifier, and can be used as a non-tap water source when the water supply is cut off
  • Capable of producing drinking water for 100 people per day
  •
  • Municipalities, large-scale commercial facilities, designated evacuation sites, etc.
  • Local community associations, neighborhood associations, condominium management associations, etc.
  • Private residence
  • "Desaliclean Series" Mobile seawater desalination system for coastal areas
  • Seawater
  • Seawater desalination system to produce drinking water from seawater
  • Gasoline engine type that can produce water during power outages
  • Coastal regions and municipalities

Effects / Expected Benefits

By utilizing these water purification systems, drinking/domestic water can be secured even during electricity/water outages due to disasters or drought. They are also already being used as a means of securing sanitary domestic and drinking water in water-poor regions of developing countries.

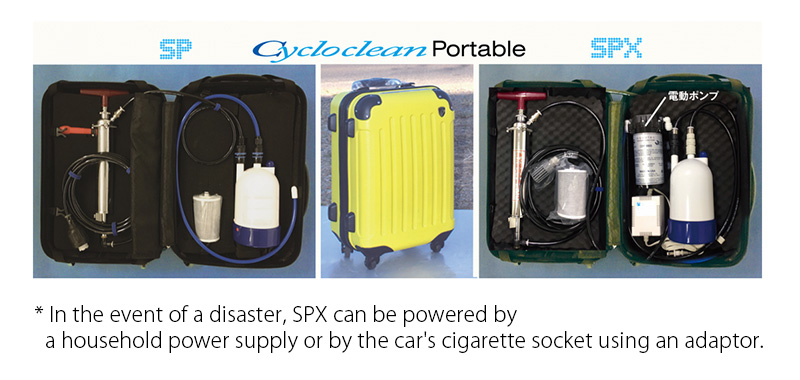

Cycloclean Portable SP and Cycloclean Portable SPX, water purification systems can be stored in a small suitcase
Fig. 1 Cycloclean Portable SP and Cycloclean Portable SPX, water purification systems can be stored in a small suitcase

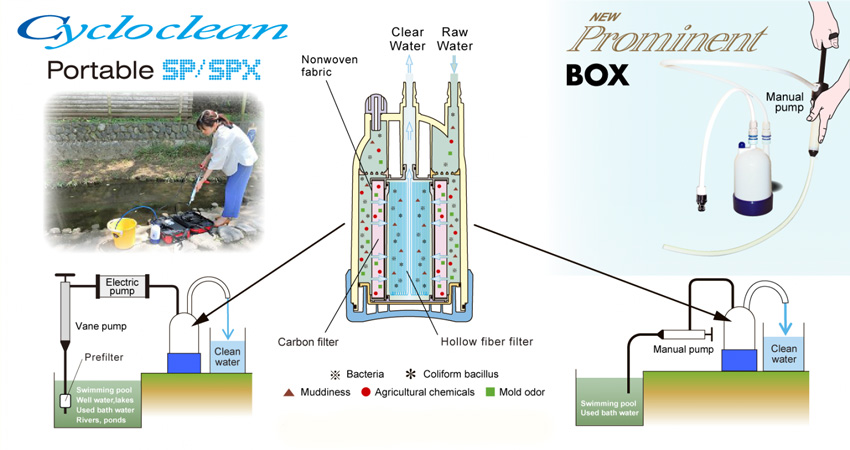

Mechanism of the water purification system
Fig. 2 Mechanism of the water purification system
Fig. 3 Cycloclean Portable series -mobile water purification system (video)
